Operating voltage
5-24V DC
Available I/O
19
Digital Inputs
(5-24V DC)
3
Digital Outputs
(5-24V DC, 200mA/Channel)
2
Flash memory
4/8 MB
Temperature sensor
onboard +/-0,5°C
PLC-X IOT (ESP32)
79.00 €

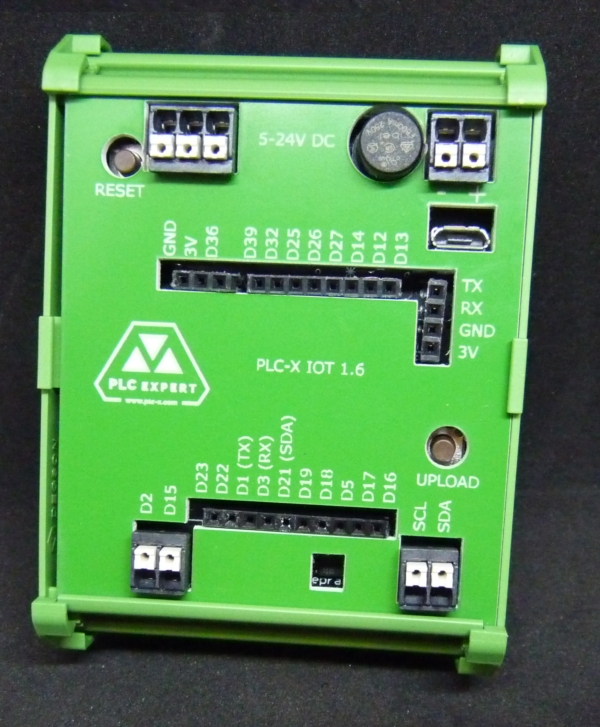

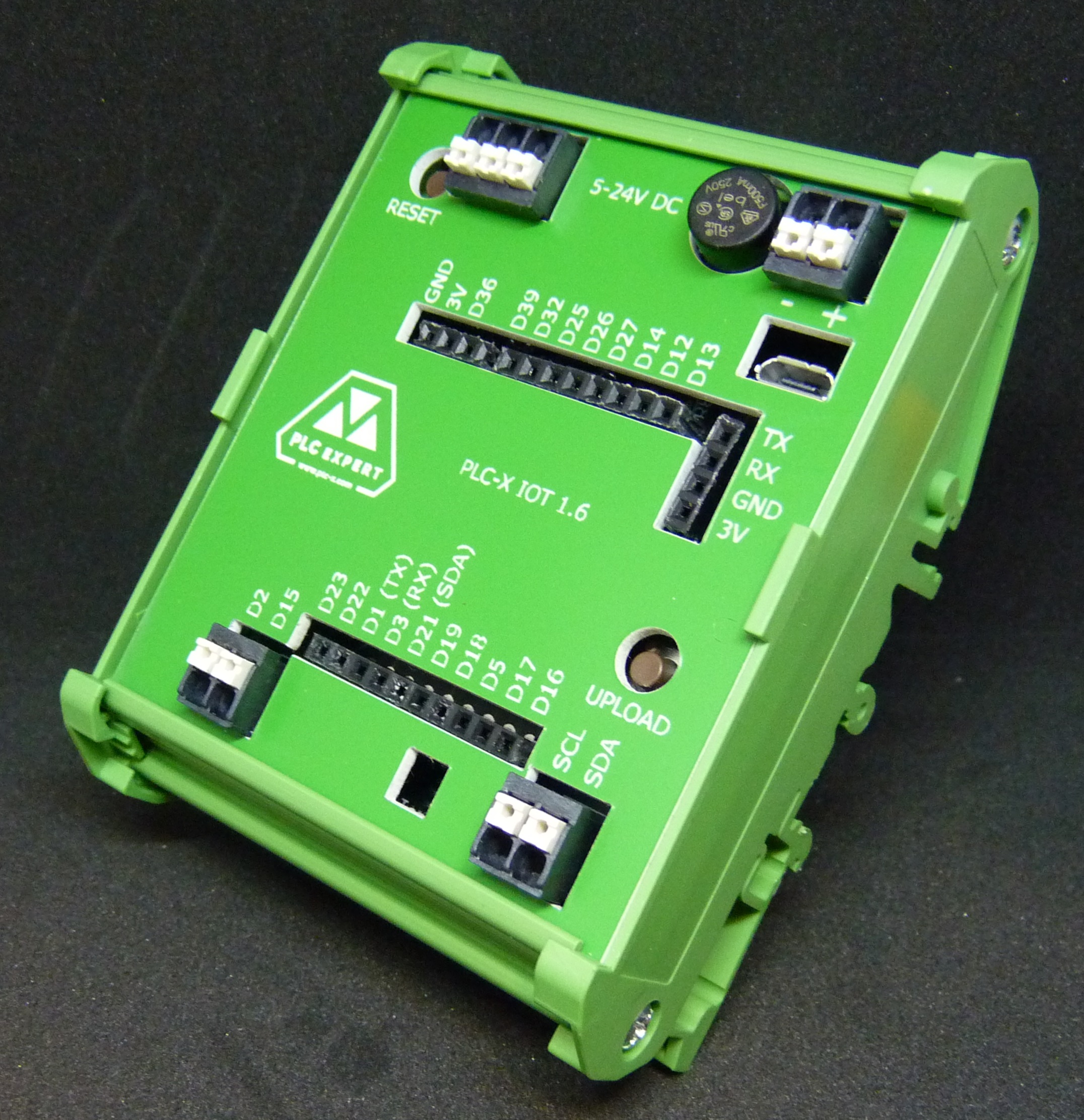

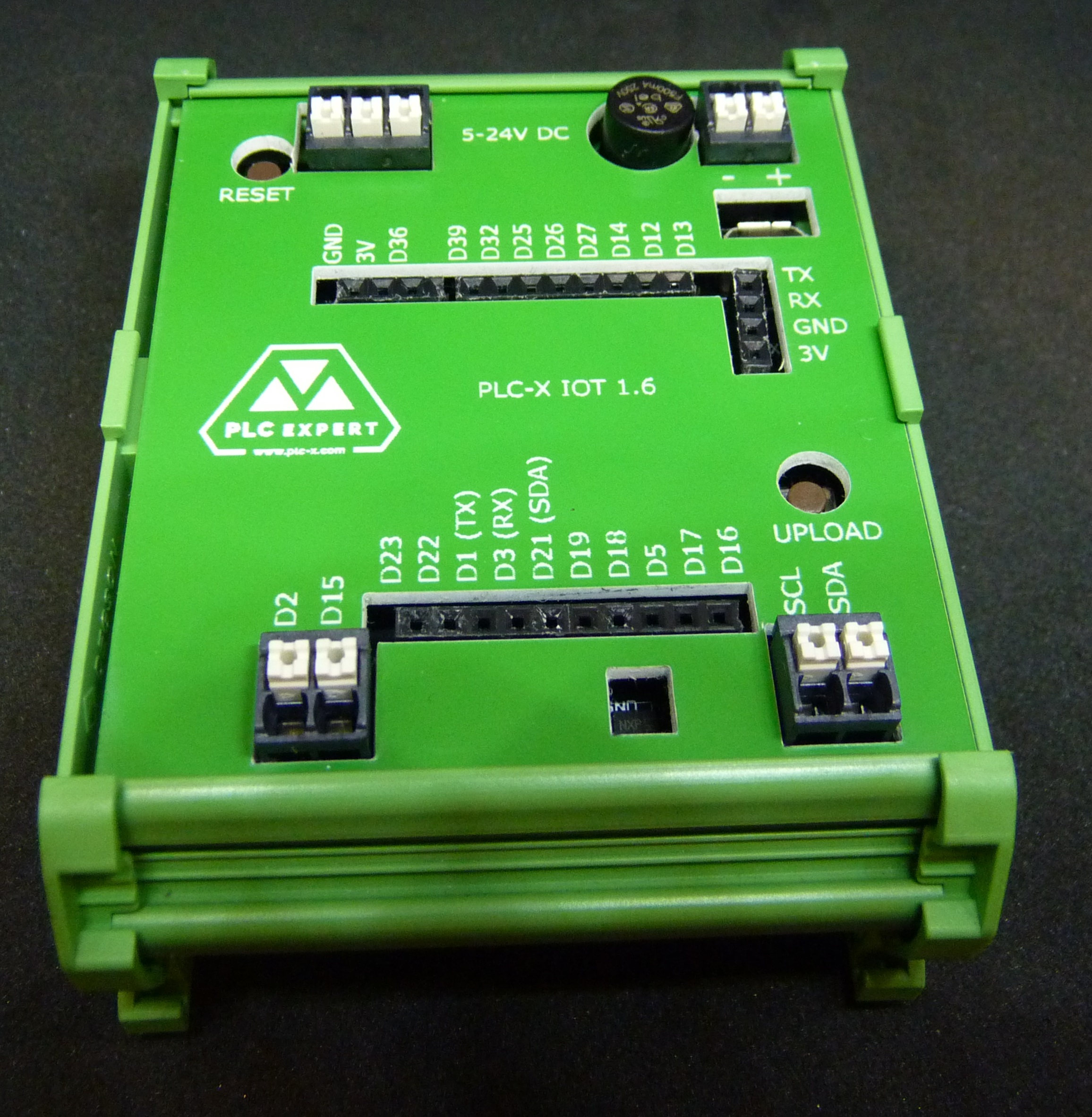

PLC-X IOT (Internet of things) module using high performance processor ESP32. The ESP32 includes Wifi and Bluetooth interface for wireless communications.
This product allows you to control your temperature regulators, gate controllers etc. Din base enclosure provides you very easy and fast instalation and also follow industry standards.
Programming is possible via Arduino IDE or Visual Studio code throught the integrated USB port.
Additional features:
- On board Digital temperature sensor (LM75)
- Additional ports for many more applications available on pin headers
- wide power range 5-24V DC
