Operating voltage
5-24V DC
Inputs
8
(5-24V DC)
Outputs
8
(5-24V DC, 250mA/Output)
Expansion bus
I2C, SPI
COMMUNICATION
RS-485, Ethernet, Wifi, Uart
PLC-X Rpi Control
109.00 €

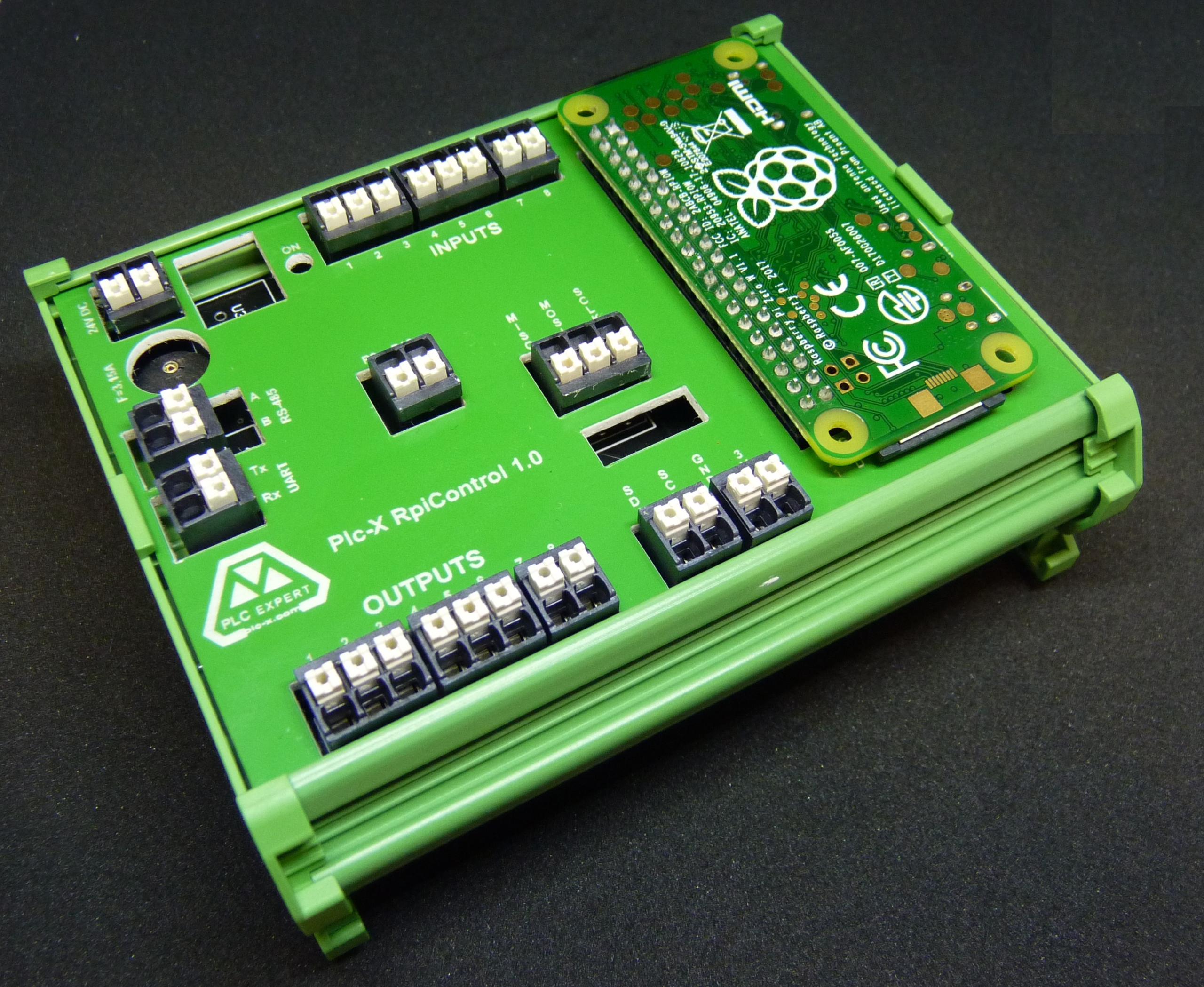

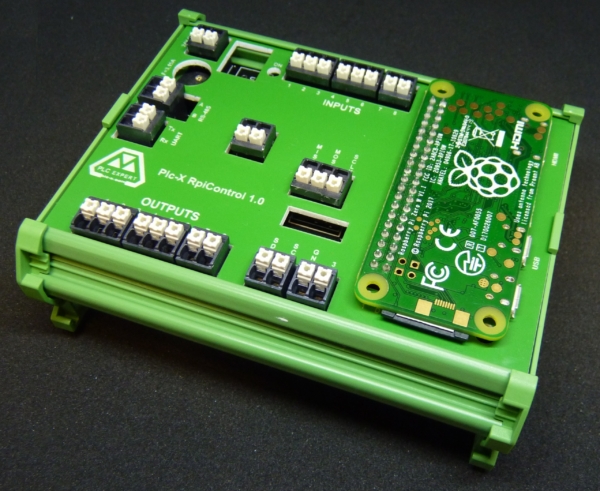

PLC-X Rpi Control is expansion shield (IO board) for The Raspberry PI Zero platform and compatible. This IO board offers the possibility of monitoring digital inputs and switching outpus according to the conditions in your program.
Expansion due to RS-485, Ethernet and Wifi (via Rpi Zero) allows you to cover several applications. For example: monitoring water level, pumps relay switching…etc.
